Model-level technical datasheet request channel covering torque-speed baseline, interface constraints, and operating assumptions.
Used for selection comparison, RFQ completeness, and internal technical sign-off before procurement.
Submit business contact and project context. Our engineering team will respond with the matching file package and revision guidance.

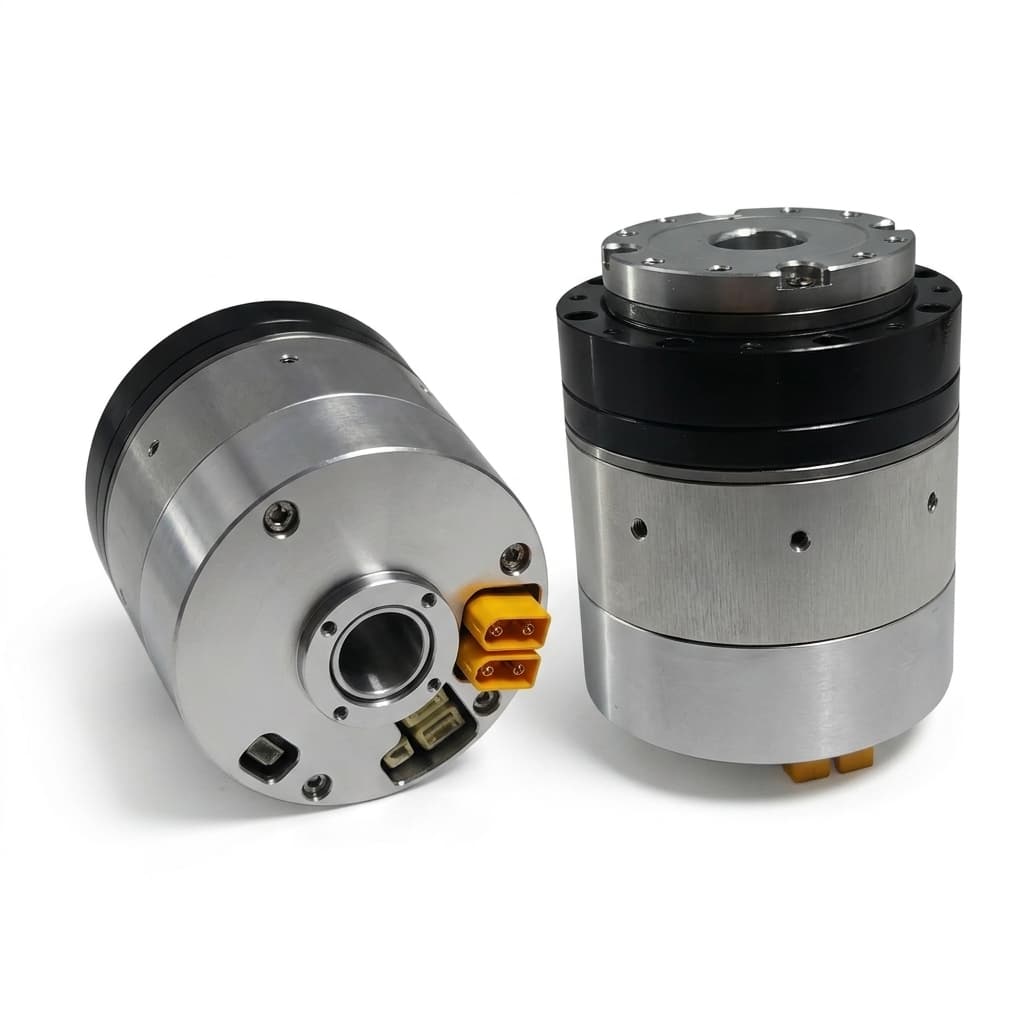

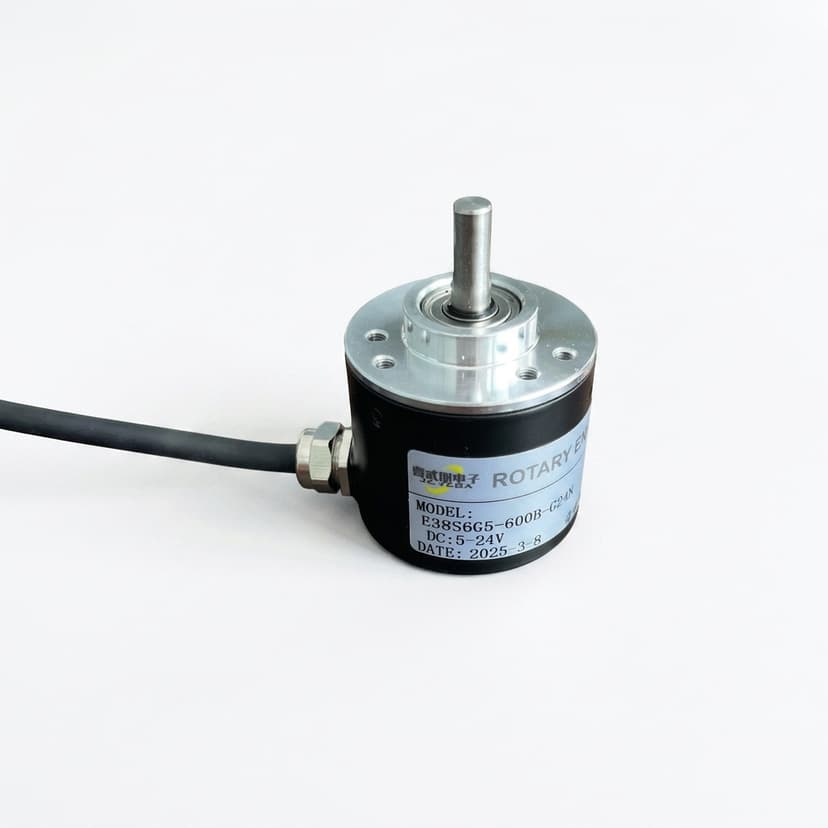

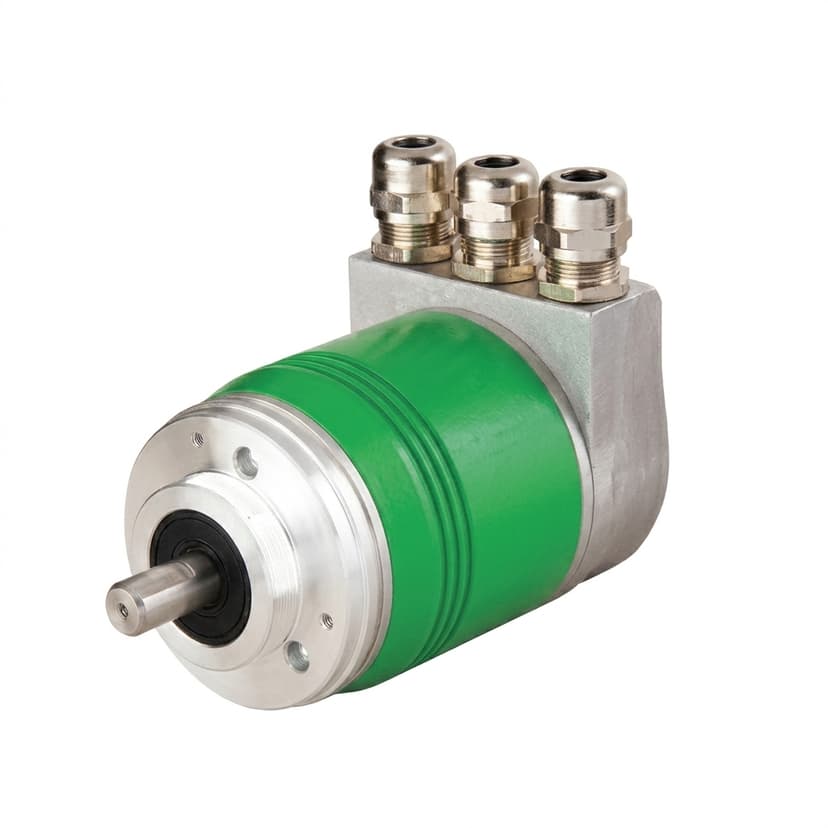

Technical datasheets provide the complete electrical and mechanical specification baseline for each actuator model. Contents include: torque-speed curve (continuous and peak), back-EMF constant (Ke), torque constant (Kt), thermal resistance and derating curves, rated/max current, encoder specification (resolution, type, communication), mechanical dimensions with tolerance, weight, IP rating, and operating temperature range. All values are measured under standardized test conditions documented in the header. Datasheets also include recommended operating regions, absolute maximum ratings, and connection diagrams for both power and signal interfaces.
Yes. Both continuous and peak torque-speed envelopes are plotted. The continuous curve reflects thermal steady-state at 25°C ambient. Derating factors for higher ambient temperatures are provided in a separate table.
Yes. Motor constants (Ke, Kt), phase resistance, inductance, and rated/peak current are specified per winding variant. If custom winding has been applied, datasheet values reflect the actual production winding.
Datasheets are updated with each engineering revision. Minor corrections (e.g., tolerance adjustments) are tracked with revision suffixes (Rev.B1, B2). Major changes (new winding, interface change) increment the primary revision.
Engineering RFQ Email
Include torque-speed targets, annual volume, and timeline.
Lead Robotics Engineer
+86 18857971991
Direct technical conversation with our lead robotics engineer.
